CE Approved Telescopic Forklift Truck

Self Propelled Telescopic Boom Lift Brief Introduction:CE self propelled telescopic boom lift GTBZ can drive flexibly and freely, with wide working scope and high efficiency. Hydraulic motor realize 40% gradeability through planetary reduction box. Telescopic boom and cylinders are protected with dust proof jacket to prevent dust in. The round glossy shape boom and chassis is not easily dirty with dust. Length and angle of boom are monitored real time by length sensor and angle sensor. Protection level of electrical system is above IP65. With great outreach, the boom lift can work in large scope continuously. 2 wheels drive and 4 wheels drive, 2 wheels steering and 4 wheels steering are optional. It is especially good for shipbuilding, ship maintenance, building construction, steel structure fixing, and bridge construction and so on.

Self Propelled Telescopic Boom Lift  Specifications:

Model

GTBZ30

GTBZ32

Size

Max. working height (m)

32.2

33.1

Max. platform height (m)

30.5

31.4

Horizontal reach (m)

22.5

24.1

Length - stowed (m)

13.1

12.5

Width stowed (m)

2.6

2.6

Height stowed (m)

3.2

3.2

Platform Length (mm)

2400

2400

Platform width (mm)

900

900

Platform Height (mm)

1170

1170

Axle base (m)

3.8

3.8

Ground clearance (mm)

240

240

Performance

Lifting capacity (kg)

340

230

Platform rotation

±80°

±80°

Turntable rotation

360° continuous

360° continuous

Turntable tailswing radius (mm) - wheel retracted

1700

1700

Turntable tailswing radius (mm) - wheel extended

1200

1200

Drive speed - stowed (km/h)

4.8

4.8

Drive speed - extended (km/h)

1.1

1.1

Gradeability

40%

40%

Turning radius - inside (m)

2.9

2.9

Turning radius - outside (m)

5.2

5.2

Controls

DC proportional

DC proportional

Telescopic method

In sequence+

Synchronous

In sequence+

Synchronous

Tires size

385/65-22.5

385/65-22.5

Power

power source

Cummins 60kW

Cummins 60kW

Voltage

12V

12V

Hydraulic oil volume (L)

280

280

Fuel oil volume (L)

150

150

Machine weight (t)

19.9

20.4

22M Self Propelled Telescopic Boom Lift

Description:
MEASUREMENTS
GTBZ20
GTBZ22Z
Working height maximum
22.4m
23.9m
Platform height maximum
20.7m
22.2m
Horizontal reach maximum
19.1m
20.2m
Below ground reach
1.76m
2.93m
Platform length-8ft model
0.91m
0.91m
Platform length-6ft model
0.76m
0.76m
Platform width-8ft model
2.44m
2.44m
Platform width -6ft model
1.83m
1.83m
Height-stowed
2.7m
2.7m
Length-stowed
9.59m
10.69m
Width
2.49m
2.49m
Wheelbase
2.5m
2.5m
Ground clearance-center
0.43m
0.43m
PRODUCTIVITY
Lift capacity (restricted)
480kg
480kg
Lift capacity (non-restricted)
340kg
250kg
Platform rotation
160°
160°
Jib rotation
—
135°
Turntable Swing
360°continuous
360°continuous
Turntable tailswing
1.19m
1.19m
Travel speed -stowed
6.3km/h
6.3km/h
Travel speed -raised or extended
1.3km/h
1.3km/h
Gradeability -stowed (2WD)
30%
30%
Gradeability -stowed (4WD)
45%
45%
Turning radius - inside
3.0m
3.0m
Turning radius –outside
5.2m
5.2m
Turning radius - axle extendeded    outside
Controls
24V DC Proportional
24V DC Proportional
Solid tires
9.00-20
9.00-20
POWER
Power source
Lovol 1004-4 78 hp (58kw)
Perkins 400 61hp (45.5kw)
Commins B3.3NA-C60 4 60HP (45kw)
Auxiliary power unit
24V DC
24V DC
Hydraulic tank capacity
190L
190L
Fuel tank capacity
150L
150L

Self Propelled Telescopic Boom Lift Specifications:

reacool

About
Found in 2000, Reacool Industry Co., Ltd. is a Chinese professional manufactory. 100% of our products are exported to overseas markets. Our goal is to make customer satisfaction priority in our business. We promise to provide customers with highest quality, best price and best before and after-sales service.
For this in mind, we have established following guidelines to protect you and your customers with warranty issues. All bathroom cabinet and Glass Mirror purchased from Reacool have a replacement and exchange guarantee. Products will be replaced if they are defect or non-working. Also included in our warranty package is at least 12-month manufacturer warranty.
Also with our in-depth knowledge in marketing, we are able to foresee the market trend of the products accurately. We can meet customers' unique design in function, appearance and packing with our professional R&D ability.
Of course we will be happy to assist you at anytime in any technical questions you may have. If you are interested any products of our company, please do not hesitate to contact with us, I will make all my efforts to help you. We hope we can cooperate with your esteemed firms to create a splendid and bright future.

Contact
Street Address:  Dragonwin Market NO.1Hua Fa Northern Road shenzhen,china
City:  shenzhen
Province/State:  Guangdong
Country/Region:  China (Mainland)
Zip: 518000
Telephone: 0086-755-89605506
Mobile Phone:  13528745993
Fax:  0086-755-89605501

Website: http://reacool.manufacturer.globalsources.com

lqtextile

About
Our company was built in 2005 and we are specialized in water-saving products such as bathroom vanity, macerator toilets, Shower Cabin, bathroom accessories and macerators. We have many new products for energy conservation. Welcome to contact us.

Contact
Street Address:  No. 90 XinKang Road, Beigan Street, Xiaoshan District,Hangzhou City. Zhejiang Province. China
City:  Hangzhou
Province/State:  Zhejiang
Country/Region:  China (Mainland)
Zip: 311202
Telephone: 0086-0571-0571-82864116-608
Mobile Phone:  008615268126249

Website: http://www.broyeurspecialist.com

szsunstar

About
Shenzhen Sunstar Electronic Technology Co., Ltd., a high-tech enterprise, which devotes to research and development, production and marketing of all kinds of digital shower panel. We have the leading technological capabilities in this industry, and high-quality team of professionals to provide you with good quality products and excellent after-sales services.
Our company mainly researches, develops and produces all kinds of CCD Camera,Tablet PC,DVD and all kinds of digital products.
Since establishment, we made "High-Quality, High Credibility, High Starting Point, High Efficiency, Client Focus, Services First" as our tenet, aiming at expanding the domestic and international markets, the scale operation, focusing on improving the consciousness of quality of all the employees and labor quality. We have established a sound quality monitoring system and superb quality of production lines. We make the modern modes of production management system to full implementation. In addition, we have established a sound marketing service network.
Over the years, thanks to friends' enthusiastic support from all walks of life, we can produce first-class products with a strong guarantee in the same industry and have won a great reputation at home and abroad. Our products are popular in the United States, Italy, France, Singapore, Malaysia, Thailand, South Korea, Taiwan, Hong Kong, Iran, Turkey, Pakistan and other countries in the Middle East, Europe and Africa.
With the continual enhancement of production technology and resources of production lines, we have never stopped the intensive training of the production and management team, which is the perfect reason for the growing enterprises, and also the reason we are trustworthy. With professional management team and kitchen faucet development research professionals, we can supply our customers with excellent quality products which are competitive, and our sales representatives will provide excellent services. If you are interested in our products, please feel free to contact us for more information. We welcome customers to form cooperation with us on OEM.

Contact:
Street Address:  Room 708 Western Block 4,Saige Technology Park,North Huaqiang RD.,Futian District,Shenzhen,China
City:  Shenzhen
Province/State:  Guangdong
Country/Region:  China (Mainland)
Zip: 518031
Telephone: 86-0755-83366983
Mobile Phone:  86-13554937189
Fax:  86-0755-83201358
Website: http://www.vavastar.com/

reacool

About
Found in 2000, Reacool Industry Co., Ltd. is a Chinese professional manufactory. 100% of our products about shower room are exported to overseas markets. Our goal is to make customer satisfaction priority in our business. We promise to provide customers with highest quality, best price and best before and after-sales service.
For this in mind, we have established following guidelines to protect you and your customers with warranty issues. All products purchased from Reacool have a replacement and exchange guarantee. Products will be replaced if they are defect or non-working. Also included in our warranty package is at least 12-month manufacturer warranty.
Also with our in-depth knowledge in marketing, we are able to foresee the market trend of the shower steam accurately. We can meet customers' unique design in function, appearance and packing with our professional R&D ability.
Of course we will be happy to assist you at anytime in any technical questions you may have. If you are interested any products of our company, please do not hesitate to contact with us, I will make all my efforts to help you. We hope we can cooperate with your esteemed firms to create a splendid and bright future.

Contact
Street Address:  Dragonwin Market NO.1Hua Fa Northern Road shenzhen,china
City:  shenzhen
Province/State:  Guangdong
Country/Region:  China (Mainland)
Zip: 518000
Telephone: 0086-755-89605506
Mobile Phone:  13528745993
Fax:  0086-755-89605501
Website: http://reacool.manufacturer.globalsources.com

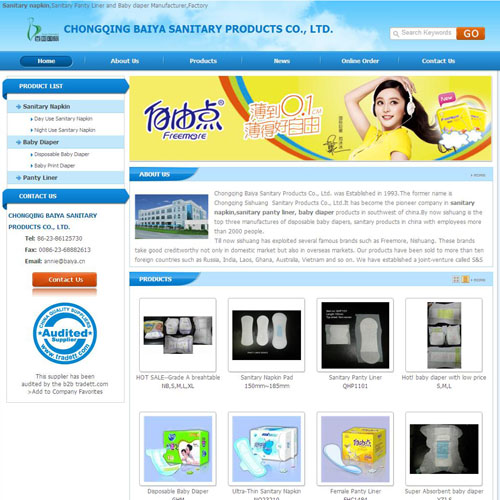

About
